Introduction to Concave convex blind plate, advantages, characteristics and principles of blind plate

Concave convex blind plateis an important component in the pipeline system, and its function is similar to that of head and cap. is mainly used to block the pipeline mouth and prevent medium leakage.。

1、Brief introduction of Concave convex blind plate

Concave convex blind plateis a kind of flange with no hole in the middle, which is mainly used to plug the pipe mouth. Its function is similar to that of the head and pipe cap, but the blind plate seal is a detachable sealing device, and the head seal is usually not ready to be opened again.，support customization。

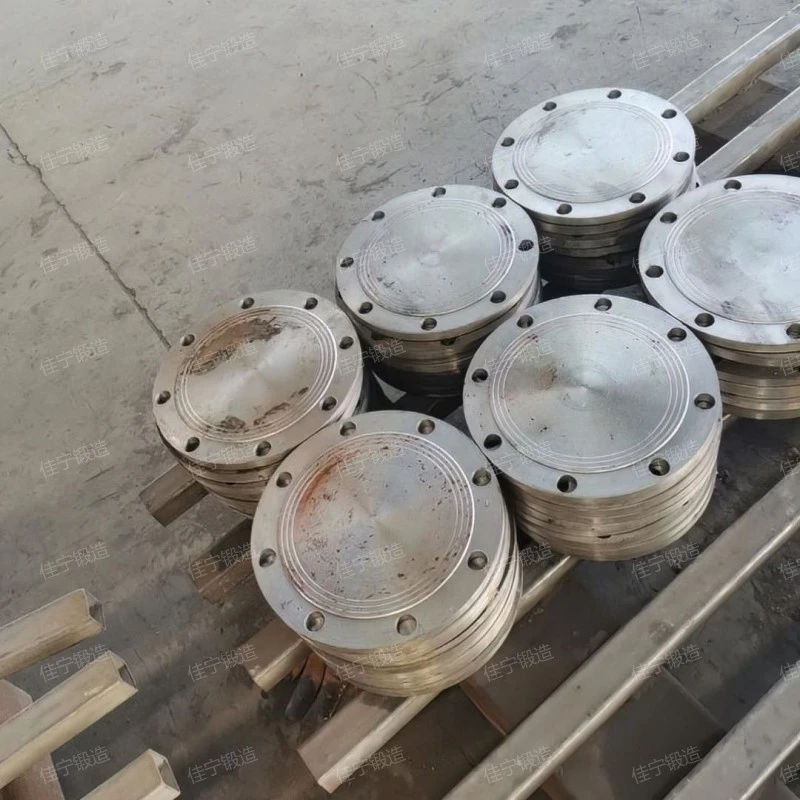

Concave convex blind plate

2、Concave convex blind plate advantage

The advantages of Concave convex blind plate are as follows:

1. Economical and practical

Although the initial investment of the Concave convex blind plate may be relatively high, its excellent performance and long life make the overall cost-effectiveness very high. The Concave convex blind plate can reduce the loss caused by medium leakage and pollution, and reduce the maintenance cost and production cost.

2. Excellent sealing performance

The Concave convex blind plate can achieve excellent sealing performance through its unique sealing surface design and material selection. Whether it is plane seal, concave-convex seal or other forms of seal, the Concave convex blind plate can ensure that the medium in the pipeline or equipment will not leak, thus ensuring the safety and stability of production. This sealing performance is of great significance for preventing medium pollution and protecting equipment and environment.

3. Recycling, environmental protection and energy saving.

Some Concave convex blind plates made of special materials have the characteristics of Wide range of application. This kind of Concave convex blind plate has low energy consumption and pollution in the process of production and use, which conforms to the concept of green development. With the continuous improvement of environmental awareness, recyclable Concave convex blind plates will gradually become the mainstream products in the market.

4. Simple structure and convenient installation

The structure of the Concave convex blind plate is relatively simple, and it usually consists of three parts: the main body, the seal and the connector. This structure makes the installation and disassembly of the Concave convex blind plate very convenient and can quickly adapt to different use scenarios and needs. During pipeline maintenance, replacement or system debugging, the Concave convex blind plate can quickly achieve isolation and cut-off functions, improving work efficiency.

5. Wide range of application

Concave convex blind plates are widely used in the sealing of pipelines and equipment in industries such as make paper. In these industries, Concave convex blind plate can effectively prevent media leakage and pollution, and ensure the safety and stability of production. At the same time, because of its simple structure and convenient installation, Concave convex blind plate are often used in pipeline maintenance and replacement, which provides strong support for industrial production.

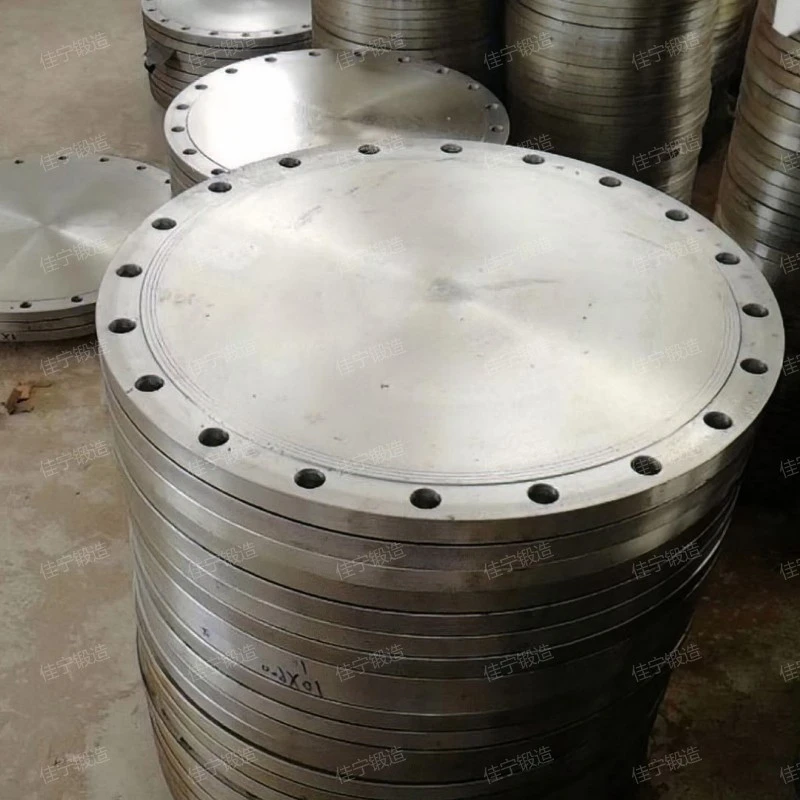

Concave convex blind plate

3、Concave convex blind plate application

Concave convex blind plates have the following purposes.

1. Prevent medium leakage

The Concave convex blind plate has excellent sealing performance, which can effectively prevent the leakage of medium in the pipeline. This is very important to protect the environment and personnel safety, especially when dealing with toxic, harmful or flammable and explosive media.

2. Auxiliary device of safety valve

In some safety valves or pressure relief devices, Concave convex blind plates are used as auxiliary devices to ensure that the flow of media can be quickly cut off in an emergency.

3. Isolated piping system

Concave convex blind plates are used to isolate a part of the piping system for maintenance, overhaul or replacement of equipment. By installing the Concave convex blind plate, the medium flow in the pipeline can be cut off and the safety of the working area can be ensured.

4. Protect equipment and pipelines

In some cases, the pipeline system may be impacted by high pressure, high temperature or corrosive media. The use of Concave convex blind plates can protect equipment and pipelines from these harsh conditions and prolong their service life.

5. Control medium flow direction

The Concave convex blind plate can also be used to control the flow direction of the medium in the pipeline. By installing the Concave convex blind plate, the flow path of the medium can be changed to meet the process requirements or optimize the production process.

Concave convex blind plate

4、Introduction of Concave convex blind plate characteristics

Concave convex blind plateVarious materials,Strong adaptability,Economical and practical,Recoverable utilization,Environmental protection and energy saving，It has a wide range of uses, and is often used inOverhaul and replace equipment,Convenient maintenance and repair,Prevent medium leakage,Control medium flow direction,Completely isolated medium and so on，is a popular Concave convex blind plate，it has been widely used in food processing, Natural gas industry, make paper, pharmacy, chemical lines and other industries，it is an ideal choice for customers to buy Concave convex blind plate。

Concave convex blind plate

5、Concave convex blind plate introduction video

Jianing forging provides customers with on-site high-definition video, fully demonstrates the advantages of on-site Concave convex blind platet operation, and helps customers to deeply understand the product production process and production site, and gain favorable comments and recognition from customers.。

Concave convex blind plate

As you can see from the live video.，Jianing forging the advantage is Excellent sealing performance can be achieved through its unique sealing surface design and material selection. Whether it is plane seal, concave-convex seal or other forms of seal, the Concave convex blind plate can ensure that the medium in the pipeline or equipment will not leak, thus ensuring the safety and stability of production. This sealing performance is of great significance for preventing medium pollution and protecting equipment and environment.、The materials are varied, including carbon steel, stainless steel, alloy steel, copper, aluminum, PVC and PPR. These Concave convex blind plates made of different materials can adapt to different working environments and media requirements, ensuring excellent sealing performance and service life under various working conditions. At the same time, some Concave convex blind plates made of special materials can also resist the corrosion and erosion of media and prolong the service life of equipment.、It has the characteristics of recycling. This kind of Concave convex blind plate has low energy consumption and pollution in the process of production and use, which conforms to the concept of green development. With the continuous improvement of environmental awareness, recyclable Concave convex blind plates will gradually become the mainstream products in the market.、The structure is relatively simple, usually consisting of three parts: main body, sealing element and connecting piece. This structure makes the installation and disassembly of the Concave convex blind plate very convenient and can quickly adapt to different use scenarios and needs. During pipeline maintenance, replacement or system debugging, the Concave convex blind plate can quickly achieve isolation and cut-off functions, improving work efficiency.、It is widely used in the sealing of pipelines and equipment in industries such as Petroleum industry. In these industries, Concave convex blind plates can effectively prevent media leakage and pollution, and ensure the safety and stability of production. At the same time, because of its be of simple construction, Concave convex blind plates are also commonly used in pipeline maintenance and replacement, which provides strong support for industrial production.。

6、Physical picture of Concave convex blind plate

The design of Jianing Concave convex blind plate is exquisite and elegant. Here are the high-definition pictures of Jianing forging's factory products for our customers' reference. We need to make an appointment to visit the factory in advance for physical inspection.。

Concave convex blind plate

Note: All the pictures in this article were taken by Jianing manufacturer.。

Concave convex blind plateis a Concave convex blind plate，Mainly used forIsolated piping system,Prevent medium leakage,Improve security,Control medium flow direction andCompletely isolated medium。
