What is a B-shaped tube plate flange? How much is the price of the tube sheet?

B-shaped tube plate flangeIt is an accessory widely used in various industrial equipment.，was developed and designed by Jianing。

1、Brief introduction of B-shaped tube plate flange

B-shaped tube plate flangeIt is a kind of fitting with specific holes drilled on circular steel plate, which are slightly larger than the outer diameter of the pipe to be penetrated.。

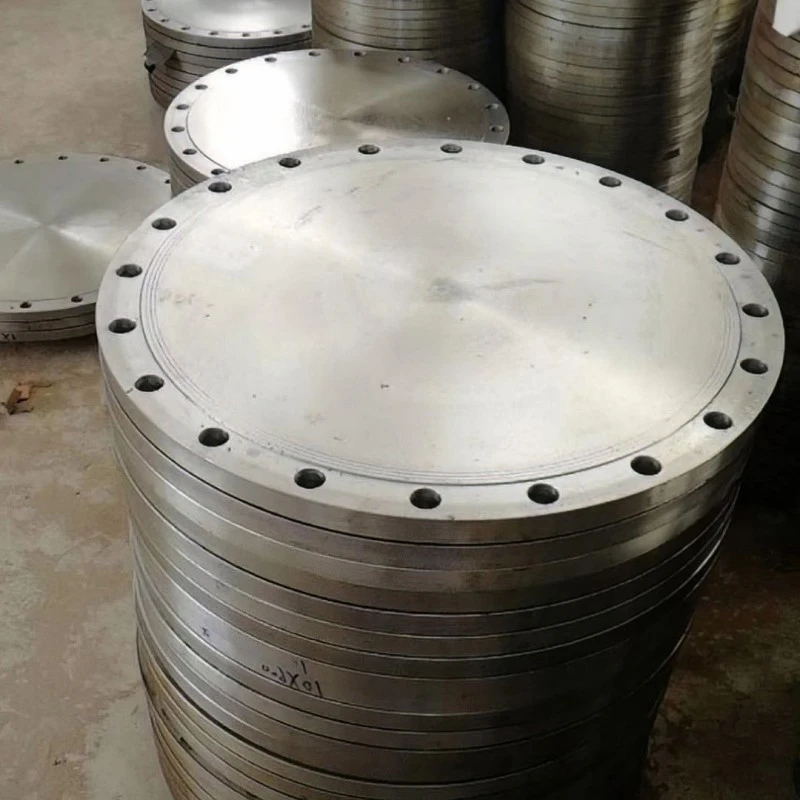

B-shaped tube plate flange

2、Functional advantages of B-shaped tube plate flange

B-shaped tube plate flanges have the following advantages.

1. Convenient maintenance

The structural design of B-shaped tube plate flanges usually takes into account the convenience of maintenance. For example, some B-shaped tube plate flanges are connected by flanges, which is convenient for disassembly and maintenance.

2. High strength and rigidity

B-shaped tube plate flanges are usually made of metal, which has strong rigidity and bearing capacity.

3. Excellent thermal conductivity

The metal material makes the B-shaped tube plate flange have good heat conduction performance, which is helpful for heat transfer in the heat exchanger.

4. Adaptability and corrosion resistance

B-shaped tube plate flanges can be made of different materials and thicknesses according to different use environments and requirements to meet different pressure, temperature and corrosion conditions. This enables the B-shaped tube plate flange to adapt to various harsh working conditions and prolongs the service life of the equipment.

5. Support and fixation

As a key structural part in the equipment, the B-shaped tube plate flange mainly plays the role of supporting and fixing the tubes (or pipes). It ensures that the pipe will not be loosened, displaced or deformed due to fluid impact, vibration or other external forces during the operation of the equipment.

B-shaped tube plate flange

3、B-shaped tube plate flange HD real shot

Jianing B-shaped tube plate flange is completely upgraded, savoring the beauty of details.。

B-shaped tube plate flange

Note: All the pictures in this article were taken by Jianing forging manufacturer.。

4、B-shaped tube plate flange characteristics

B-shaped tube plate flangeHigh strength and rigidity,Good thermal conductivity,corrosion resistance,Excellent thermal conductivity,corrosion-resistant，has been favored by more and more customers.。

B-shaped tube plate flange

5、B-shaped tube plate flange application

B-shaped tube plate flanges have the following purposes.

1. boiler

The B-shaped tube plate flange also plays an important role in the boiler, which supports the fixed tubes and makes the boiler run stably and efficiently.

2. tubular exchanger

The B-shaped tube plate flange plays the role of supporting and fixing the tubes in the tube-and-tube heat exchanger, ensuring that the tubes can be arranged stably and exchange heat effectively.

3. pressure vessel

In the pressure vessel, the B-shaped tube plate flange is used to seal and fix the tubes to prevent medium leakage and ensure the safe operation of the vessel.

4. Condenser, evaporator, seawater desalination equipment

In these devices, B-shaped tube plate flanges are also needed to support the fixed tubes to realize the processes of fluid condensation, evaporation and seawater desalination.

5. Large central air conditioner

The B-shaped tube plate flange plays a role in supporting and fixing the refrigerant pipe in large central air conditioning, which is helpful to the circulation of refrigerant and heat exchange.

B-shaped tube plate flange

6、Company selection

Choosing a suitable B-shaped tube plate flange manufacturer requires comprehensive consideration of many aspects. First of all, we should examine the strength of manufacturers, including production capacity, R&D team and industry experience. Strong manufacturers can better ensure product supply and innovation ability. Secondly, product quality is the key, and it is evaluated by product certification, material selection and manufacturing process to ensure the durability of products. Product performance can not be ignored, so we should choose manufacturers with matching technical parameters, rich types and customized services according to actual needs. After-sales service is equally important. Professional and timely service team, perfect after-sales content and extensive service network can make users worry about nothing. In addition, market reputation is also an important reference. We can understand the reputation and status of manufacturers through customer evaluation, industry reputation and award-winning honor. Finally, it is necessary to analyze the price and cost performance, and on the premise of ensuring the quality and performance, choose a manufacturer with reasonable price and high cost performance, so as to purchase B-shaped tube plate flange products that meet the demand and have good cost performance.。

Jianing

B-shaped tube plate flangeis a B-shaped tube plate flange，the advantage is As one of the skeletons of heat exchangers and other equipment, it is responsible for supporting and fixing the tubes to ensure that they will not be loose or deformed due to fluid impact during work. This stability is very important for the long-term operation of equipment.、It is often made of metal, which has strong rigidity and bearing capacity.、Depending on the use environment, the B-shaped tube plate flange can be made of different materials, such as stainless steel, titanium alloy and other corrosion-resistant materials. This enables the B-shaped tube plate flange to adapt to various harsh working conditions and prolongs the service life of the equipment.、The metal material makes the B-shaped tube plate flange have good heat conduction performance, which is helpful for heat transfer in the heat exchanger.、The contact surface with the tubes is the main channel for heat transfer. By optimizing the B-shaped tube plate flange design and material selection, the efficiency of heat transfer can be improved, the energy consumption can be reduced, and the overall performance of the equipment can be improved.。
